UK LMV Common Base Platform Nine Vehicle Variants

16th August 2026
Utility 4x4
Light and Medium Utility Vehicles have long played a major part in British Army routine activities ~ in this library image from a 2009 Firepower Demo on Salisbury Plain there are no less than five Land Rovers in shot supporting an armoured battlegroup tableaux [© Bob Morrison]

The UK MoD LMV programme will require a Common Base Platform (CBP) which will be used to deliver nine vehicle variants, writes Bob Morrison.

~

More than 30 years since the UK MoD ordered the Land Rover Truck Utility Light / Truck Utility Medium Higher Specification (aka Wolf) fleet and over 32 years since ordering the ATL Pinzgauer Truck Utility Medium [Heavy Duty] fleet, the programme to replace both types looks to be slowly drawing to a conclusion. Now known as Light Mobility Vehicle or LMV, this programme actually commenced as Operational Utility Vehicle System or OUVS way back in 2003 and was intended to also find replacements for the problem-dogged Reynolds-Boughton RB44 Truck Utility Heavy or TUH fleet which had been ordered in 1988; eventually from around 2007 a batch of 6×6 718M Pinzgauers would be procured to replace the latter in the gun tractor role.

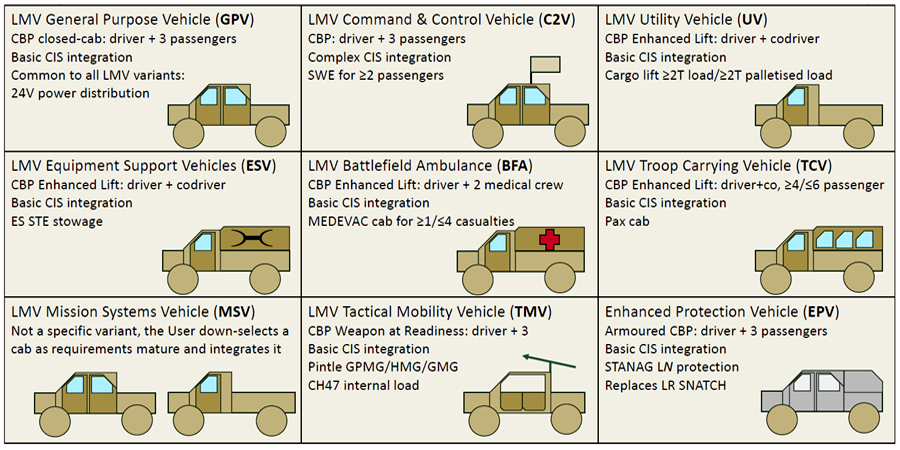

The nine categories of Light Mobility Vehicle (LMV) that UK MoD is hoping to procure on a common base platform [Crown Copyright 2026]

According to the 31 July 2026 LMV Tender Notice: “The LMV programme will require a Common Base Platform (CBP) which will be used to deliver nine vehicle variants.” Now publicly available documentation released to industry attendees at a January 2026 ‘Market Engagement Day’ contains a graphic which illustrates the nine potential variants which the MoD wishes to source on a common base platform:

  • GPV ~ General Purpose Vehicle
  • C2V ~ Command and Control
  • UV ~ Utility Vehicle
  • ESV ~ Equipment Support Vehicle
  • BFA ~ Battlefield Ambulance
  • TCV ~ Troop Carrying Vehicle
  • MSV ~ Mission Systems Vehicle
  • TMV ~ Tactical Mobility Vehicle
  • EPV ~ Enhance Protection Vehicle

Not all of these vehicle variants are straight replacements of legacy TUL, TUM and TUH platforms ~ and of course the MoD illustrations are just indicative ~ but as I have been documenting both Land Rovers and Pinzgauers since well before the January 1992 TUL/TUM Tender Invitation I think I have a reasonable grasp of what UK Forces have mostly used in the past. Below is my take on what each variant will probably replace; note that the roughly 1600 TUL (or Wolf 90) segment of the 1996 procurement of 8000 TUL/TUM plus 800 BFA vehicles was mostly demobbed about a decade ago so I have not included this short wheelbase batch here.

In-service vehicle line-up at a British Army ‘Farewell to the Land Rover‘ event at Bovington, March 2026 [© Bob Morrison]

§ GPV ~ In the 1990s, although there was a proposal to introduce 300 pick-up trucks under a separate contract (which I suspect did not bear fruition because ‘white fleet’ vehicles were eventually contract leased instead), four-door four-seater medium utility general purpose vehicles with a separate cargo load bed were not a requirement of TUL/TUM. However in 2009 Project HEBE was launched to convert up to 500 surplus to requirements Defender 130 ‘Pulse’ Battlefield Ambulances (BFA) to this configuration and at least 168 had been converted by 2021.

LA77AA, seen here at DVD 2009, was an MoD prototype General Purpose Vehicle conversion of a Land Rover Pulse 130 Battlefield Ambulance with four doors and a cargo loadbed ~ at least 168 were converted [© Bob Morrison]

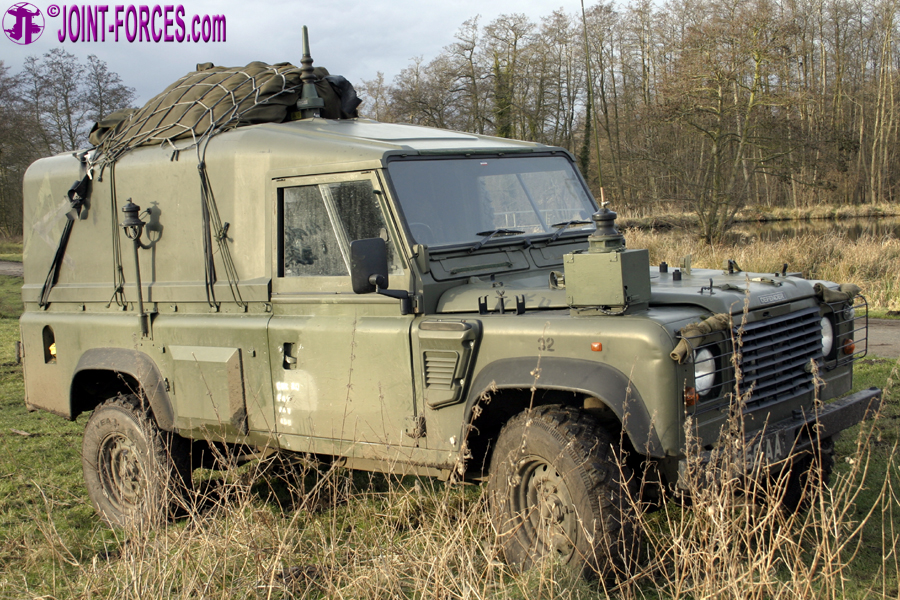

§ C2V ~ Hard Top Wolf 110 Land Rovers were one of the two main variants of the 1996 TUM procurement and a high proportion of these were configured as FFR or Fitted For Radio to allow them to be used for Command & Communication roles; KM50AA, photographed here with 16 Air Assault Brigade during Exercise EAGLES SAPPER 2005 on STANTA was typical. Unlike the latest LMV requirement, these were only three door with troop seats in the rear being inward facing. The original 1994 TUM [HD] procurement of 4×4 Pinzgauers was soft top only, but in late 1997 an initial additional small batch of hard top FFR vehicles, like LJ92AA photographed on a Norway Winter Deployment in 2004, was procured for Royal Marines and Army units dedicated to the NATO Arctic reinforcement role. In essence C2V will probably only differ from GPV by having a more complex electrical system for comms and electronic equipment, just like TUM GS and TUM FFR of three decades ago.

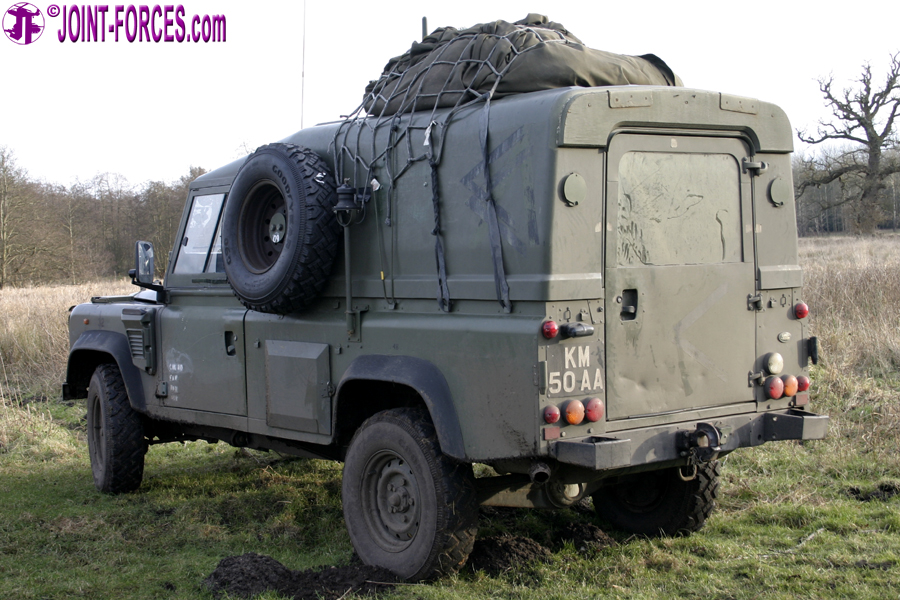

KM50AA is a typical hard top FFR TUM Wolf 110 used in the Command and Communication or C2V role [© Bob Morrison]

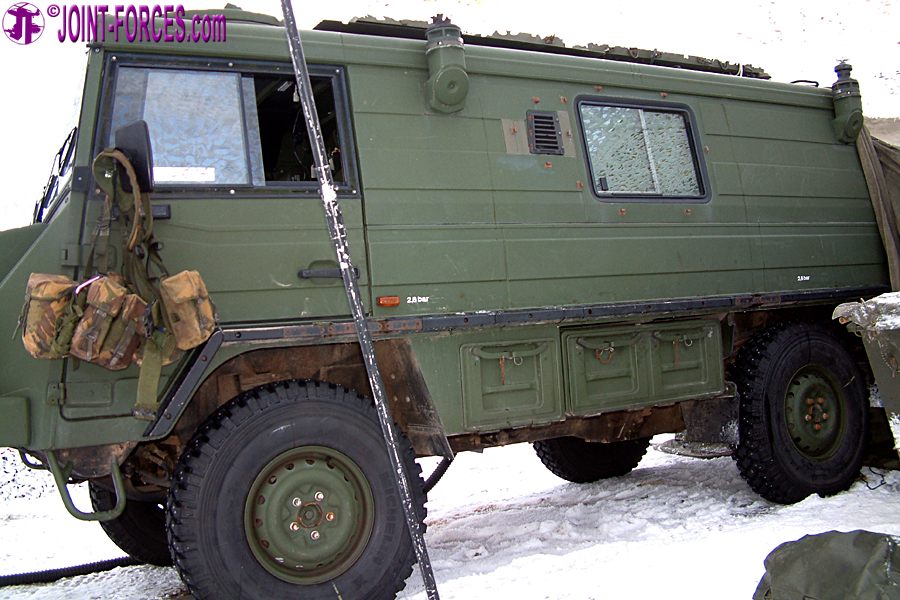

LJ93AA was a hard top FFR Pinzgauer procured five years after the original TUM [HD] batch for a specialist C2V role [© Bob Morrison]

§ UV ~ The soft top General Service Wolf 110 TUM or Truck Utility Medium, the coil-sprung derivative of the much earlier 109” wheelbase and ¾-ton payload leaf-sprung ‘Ubiquitous Land Rover’, much like the smaller but slightly higher payload Pinzgauer TUM [HD], i.e. Heavy Duty, had cab seating for two and a rear cargo compartment with inward-facing fold-up bench seating to allow troops to be transported in the rear. However this ability to carry troops in the back is not a requirement of LMV, not least because 21st Century European and UK road transport legislation dictates all seats must be forward facing, so a two-door version of GPV would suffice and would give more cargo space using the same wheelbase. Soft top Land Rover PJ91AA was photographed in RAF service during an EOD training exercise in 2002 and TUM [HD] Pinzgauer 78KL67 was photographed with 1 PARA on EAGLES LIFT 2002 on Salisbury Plain.

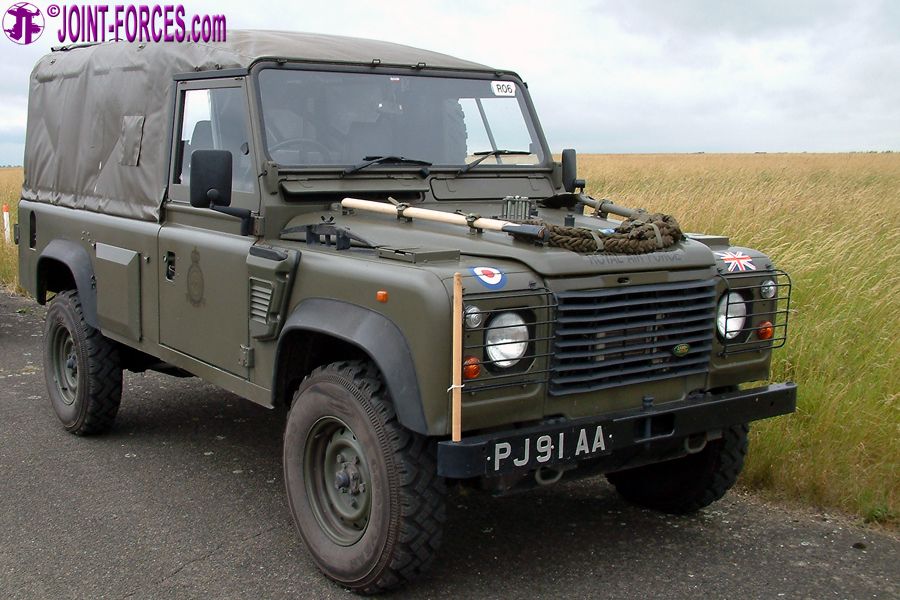

PJ91AA is a classic soft top TUM Wolf 110 used in the Utility Vehicle role ~ here by the RAF [© Bob Morrison]

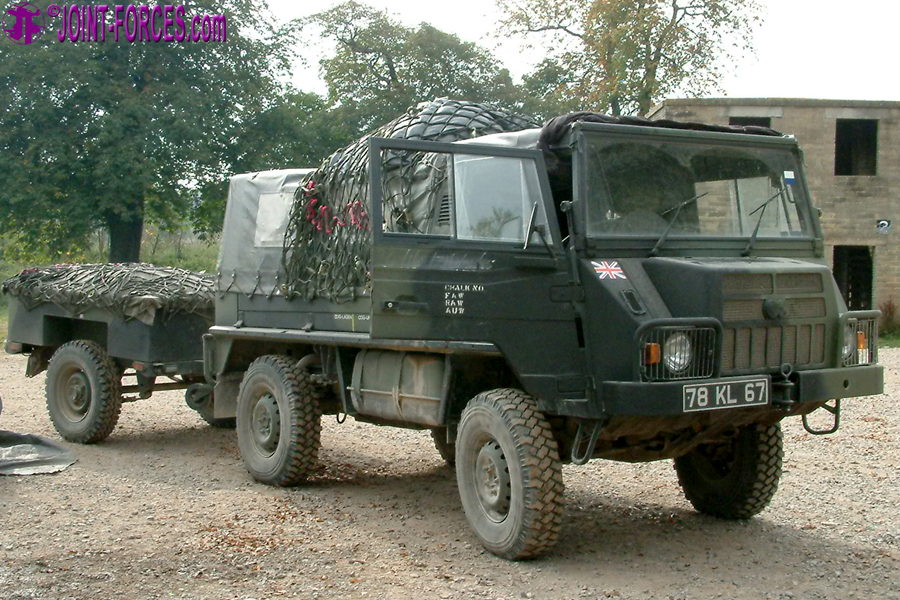

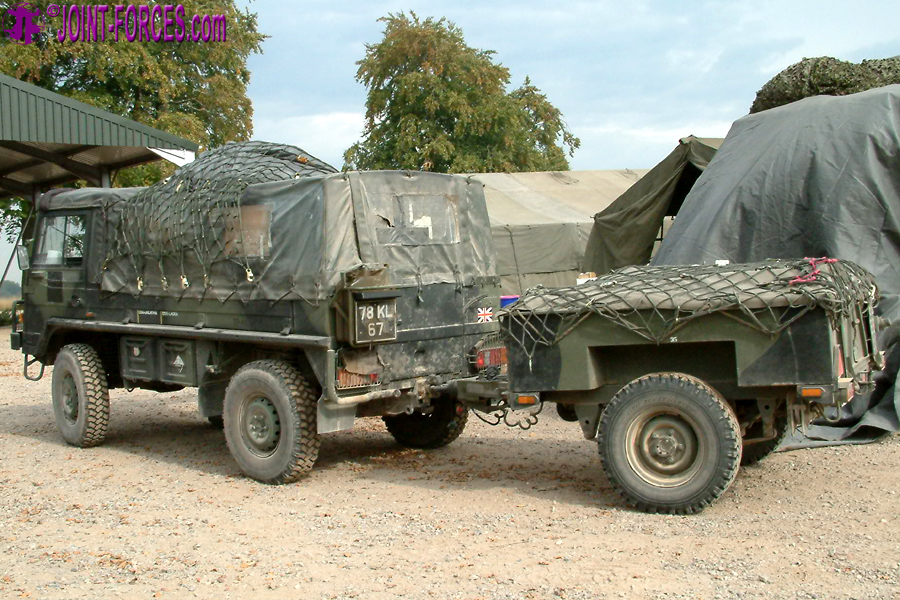

78KL67 is a soft top TUM [HD] Pinzgauer 716M used here in the Utility Vehicle role [© Bob Morrison]

§ ESV ~ Equipment Support Vehicle was not a separate category when the Pinzgauer and Wolf Land Rovers were first procured, but several small batches of 4×4 and then 6×6 Pinzgauers were ordered in the late 1990s [including 65 under the 1996 TUL/TUM procurement] and during the following decade to fill specialist roles. BB10AB, photographed here at DVD 2005 a few months after entering service, was an FFR Hard Top 716M from a batch ordered to fill a specialist role. The LMV variant illustration hints at a UV truck cab with shelter body, or pod, possibly being what the procurement team is looking for.

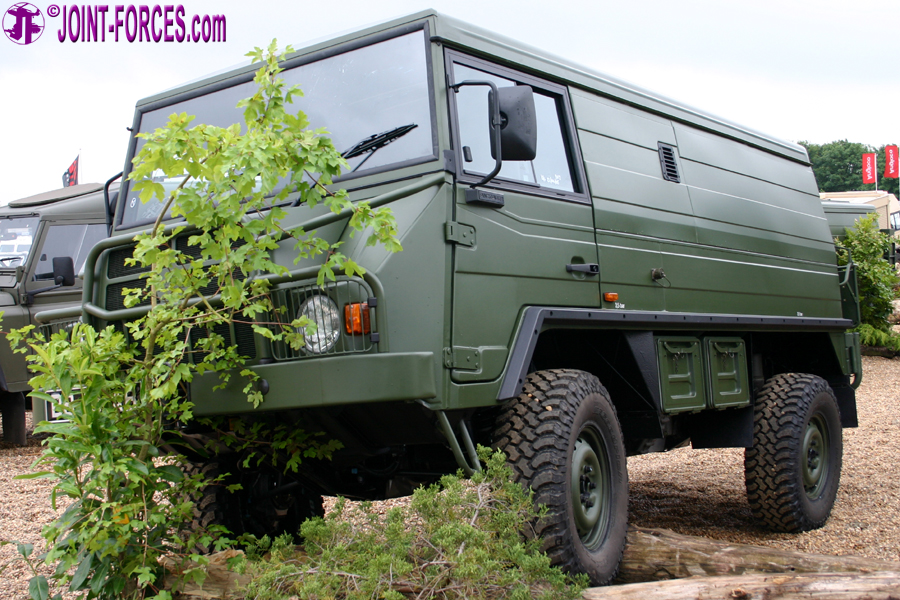

BB10AB is a hard top FFR Pinzgauer 716M from another follow-up TUM [HD] batch in late 2004 mostly for the ESV role [© Bob Morrison]

§ BFA ~ The Battle Field Ambulance variant is self-explanatory and is just a replacement for the stretched 1996 Defender 130 Pulse that has given sterling service over the last three decades and is still to be found pretty much everywhere that a British Army unit needs a medical team in attendance. As mentioned above, at one stage MoD considered heavily paring back this fleet and actually went on to convert about 20% of the originals under Project HEBE until common sense prevailed. Like ESV, the next BFA will possibly be a UV truck cab with shelter body or pod, but it may need to be an extended wheelbase version to allow stretcher cases to be accommodated.

KZ32AA is a typical 1996 batch Defender 130 Battle Field Ambulance, aka Pulse, seen here at Copehill Down in 2002 [© Bob Morrison]

§ TCV ~ A Troop Carrying Vehicle variant was never produced on either Wolf 110/130 or Pinzgauer 716M/718M chassis types, but a small batch of earlier five-door and nine-seat Defender 110 Station Wagons served as Media Operations Support Vehicles (for TAPIO, later Army ‘Moggie’, teams). I last photographed one of these (27KK55) deployed in the Baltic Region in 2024, and spotted a sibling (30KK54) in the same country a year before, but my sources suggest these 2.5TD-engined veterans have still not been demobbed even though they have racked up over 33 years of service apiece.

30KK54 is a pre-Wolf Defender 110 Station Wagon, seen here deployed in the TCV role on Operation CABRIT in 2023 [© Bob Morrison]

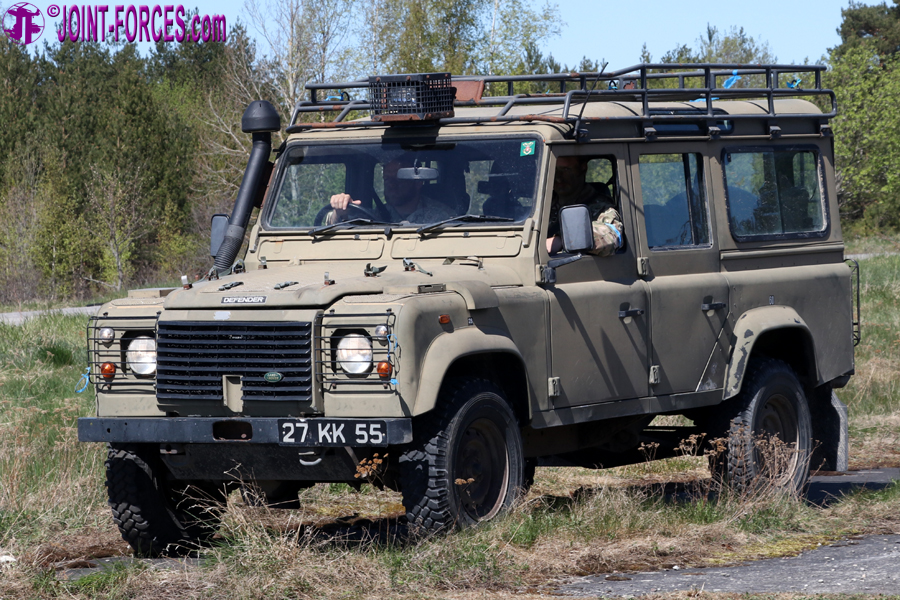

27KK55 is another pre-Wolf Defender 110 Station Wagon, seen deployed in the TCV role on Operation CABRIT in 2024 [© Bob Morrison]

§ MSV ~ Very few Mission Systems Vehicle variants of the type suggested on the LMV illustration were produced on the TUM Wolf 110 chassis, though I can think of a couple of unit conversions that might fall under that category, but a number of subsequent batches of 718M 6×6 Pinzgauers would fall under the MSV category. Examples would be AU57AB which entered service in 2004 with a High Velocity Missile Vehicle Installation Kit or HVM VIK, though several of this batch appear to have been converted in 2007 for use as 6×6 Gun Tractors, or CY12AB which entered service in 2008 fitted with an ASTOR Communications Module.

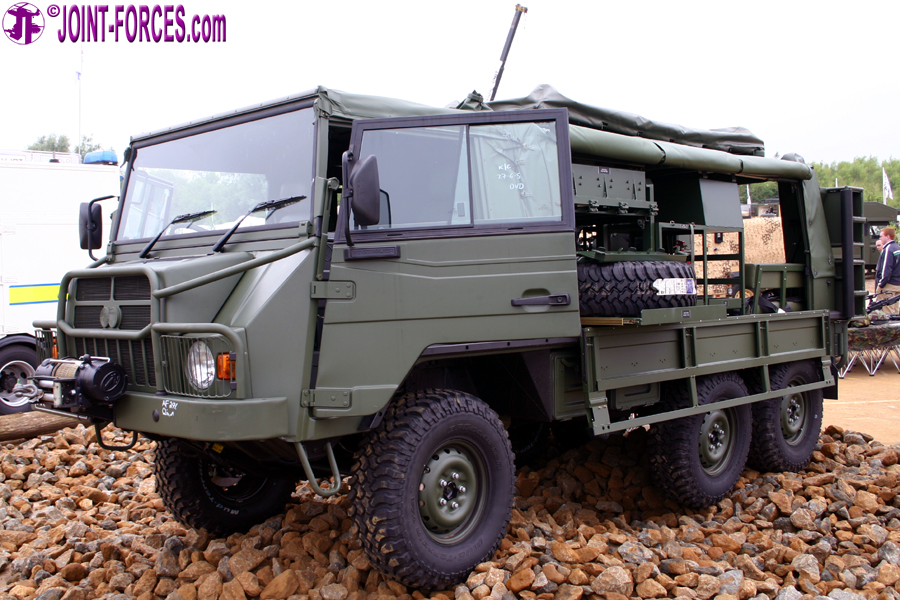

AU57AB is a TUM [HD] 6×6 Pinzgauer 718M procured in 2004 as an air defence team Mission Systems Vehicle [© Bob Morrison]

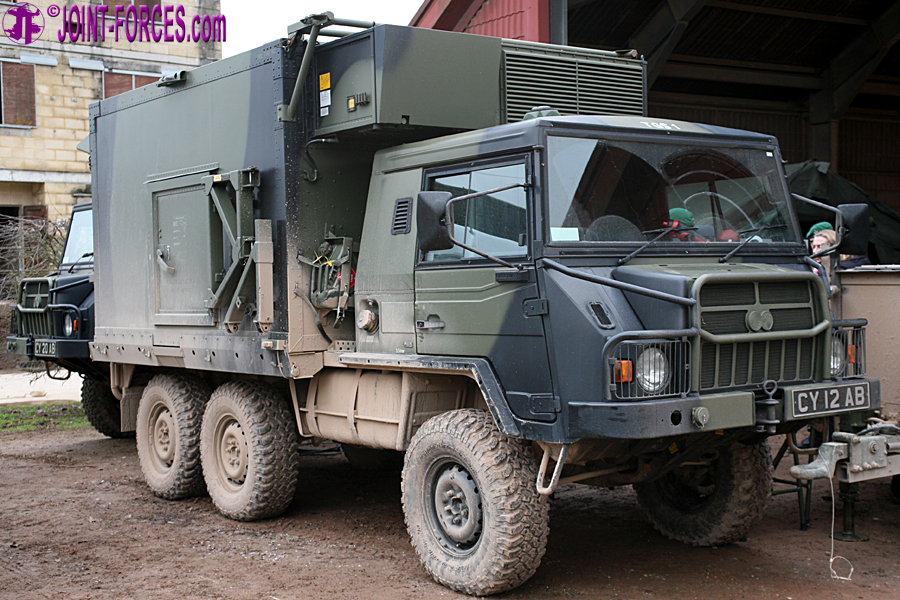

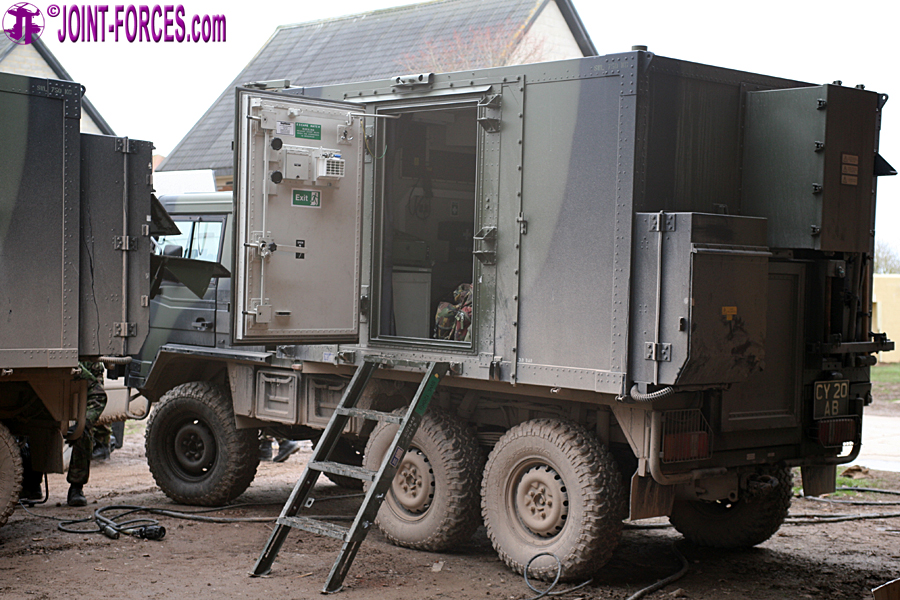

CY12AB is a 2008 batch TUM [HD] 6×6 Pinzgauer 718M ASTOR Communications Module Mission Systems Vehicle [© Bob Morrison]

§ TMV ~ The original Tactical Mobility Vehicle variant on the TUM Wolf 110 chassis was commissioned through Ricardo as the WMIK or Weapons Mount Installation Kit Land Rover around 1997/8, initially for 5 Airborne Brigade which subsequently merged with 24 Airmobile Brigade to form 16 Air Assault Brigade in 1999. Not all WMIK Defenders were built on the Wolf chassis and a quantity of earlier petrol V8-powered CAV 100 aka ‘Snatch’ Land Rovers was subsequently refurbished and given 2.8litre diesel engines plus automatic gearboxes under the R-WMIK designation; 27KK03, photographed on Otterburn in 2012, is one of these.

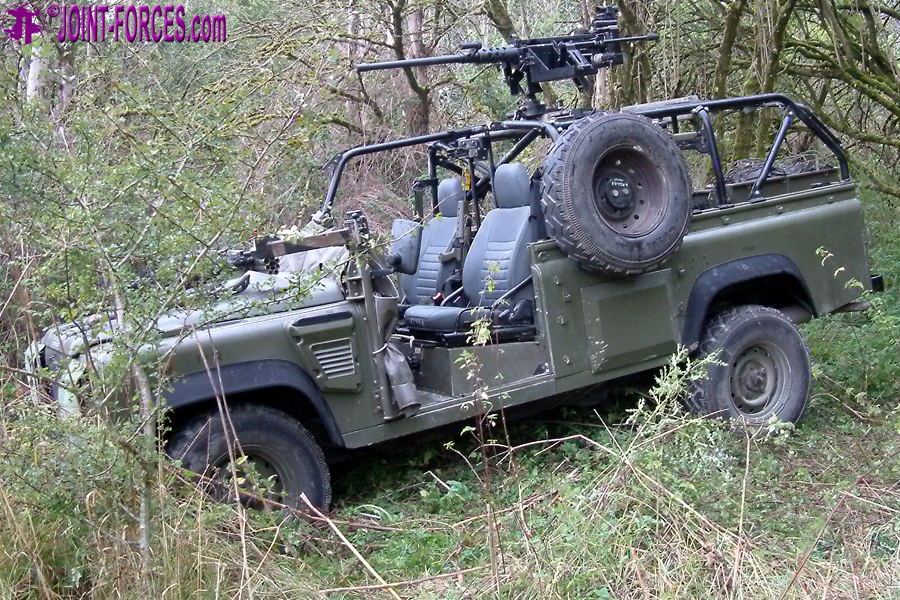

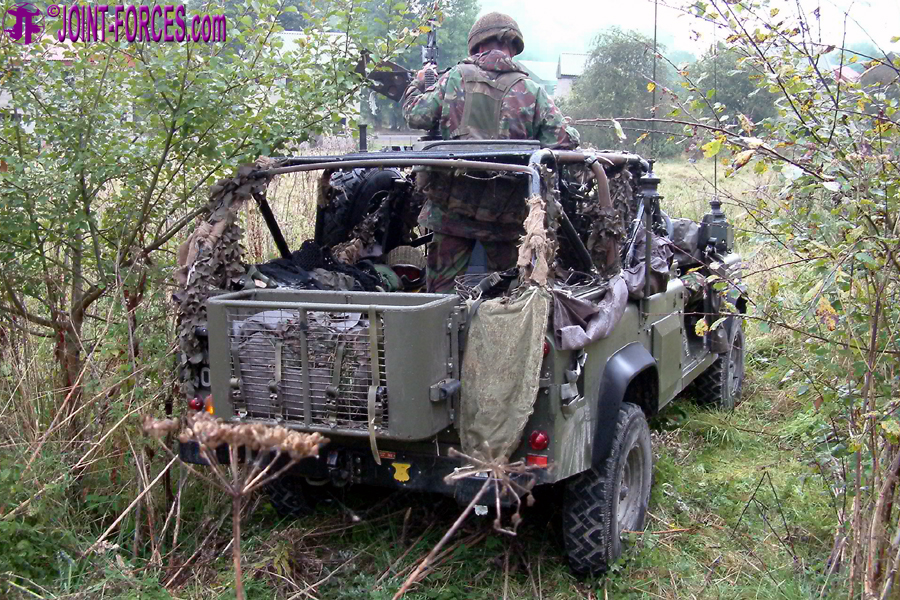

One of the very first TUM WMIK conversions for the Tactical Mobility Vehicle role photographed with 1 PARA in 2002 [© Bob Morrison]

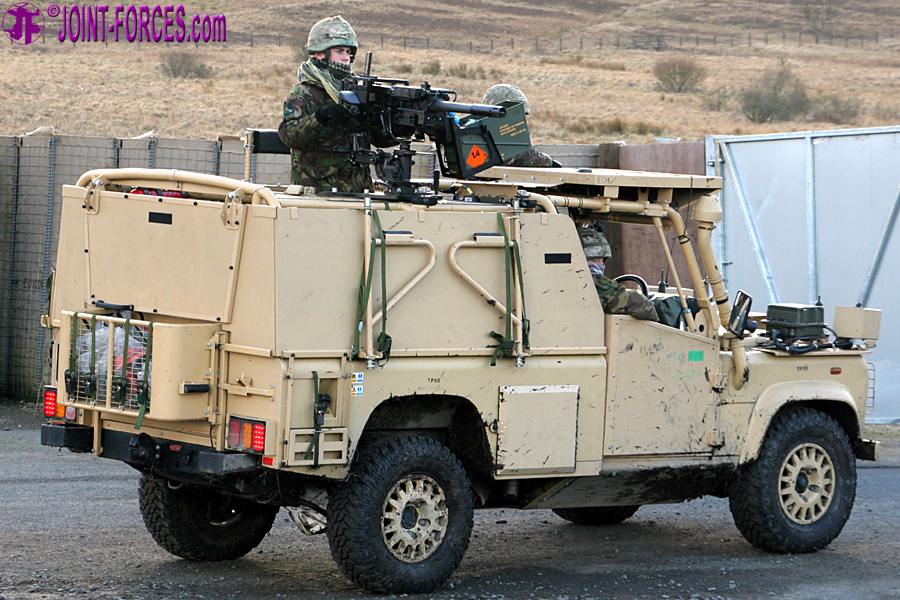

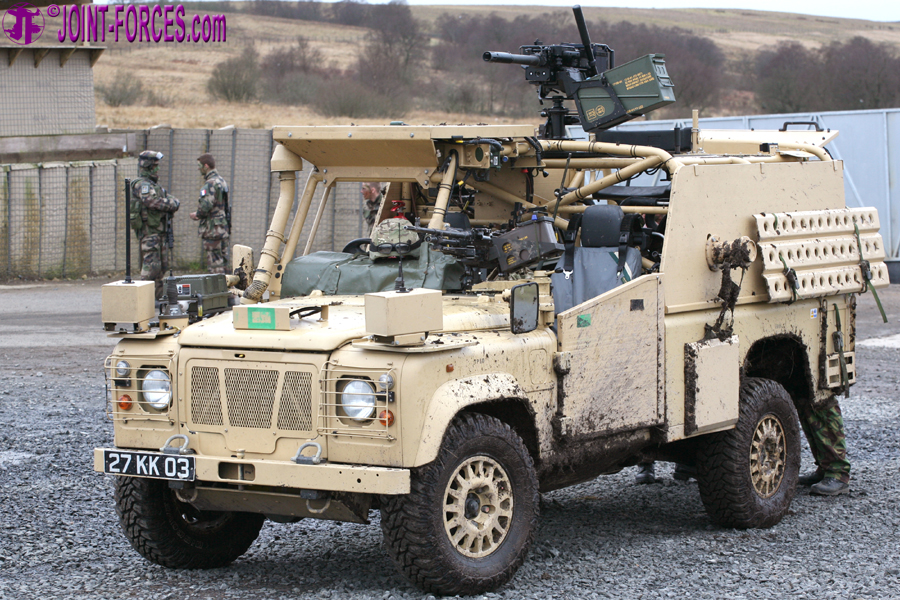

27KK03 is a Refurbished WMIK (R-WMIK) TMV on a re-engined pre-Wolf chassis with auto gearbox and lightweight armour [© Bob Morrison]

§ EPV ~ Finally we come to the Enhanced Protection Vehicle, which is the only Common Base Platform variant requiring to be armoured and according the MoD is also likely to be the least numerous representing less than 1% of the fleet. The CAV 100 aka Snatch Land Rover, which received undeserved bad publicity in Iraq and Afghanistan after is was stupidly deployed to fill a role it was never designed for because UK military planners, the defence procurement system and the Treasury, foolishly allowed a massive capability gap to build up, is actually still fulfilling its original role reasonably well. Originally introduced in the early 1990s before the Wolf 110 TUL contract was placed, the lightweight Composite Armour Vehicle was originally powered by a petrol V8 engine but a later batch with side windows and 2.5-litre Tdi engine, including SH88AA photographed here in 2013, was commissioned as the TUM EPV in 1999 for the RAF Regiment.

29KK03 is an original V8 CAV-100 or Snatch in the EPV role on the streets of Belfast in 2002 [© Bob Morrison]

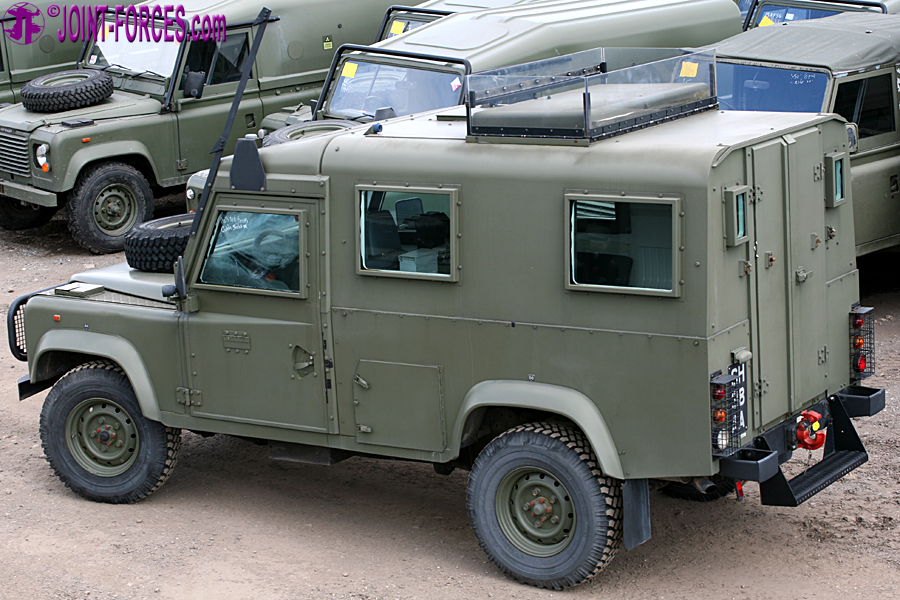

SH38AA, here awaiting disposal in 2013, is a diesel-powered 1999 batch TUM EPV procured for airfield perimeter patrols which was sent out to Iraq as a built-up area wheeled troop carrier to plug a capability gap [© Bob Morrison]

From the latest information I have been able to glean on the UK LMV programme, the MoD expects interested parties who meet their criteria to provide three common base platform variants in October for initial testing. It is my understanding that those three categories are GPV, BFA and TMV. A maximum of seven Potential Providers will be invited to participate in the ITT (Invitation To Tender) stage. It will be interesting to see which companies or consortia are still in the running in a couple of months time, assuming there are no further delays of course.

~ ~ ~ ~ ~

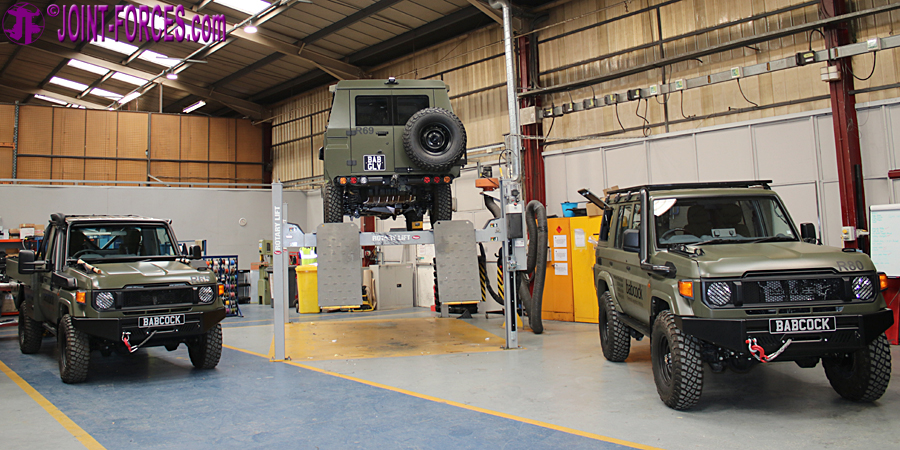

Babcock Land UK LMV contenders [© Bob Morrison]

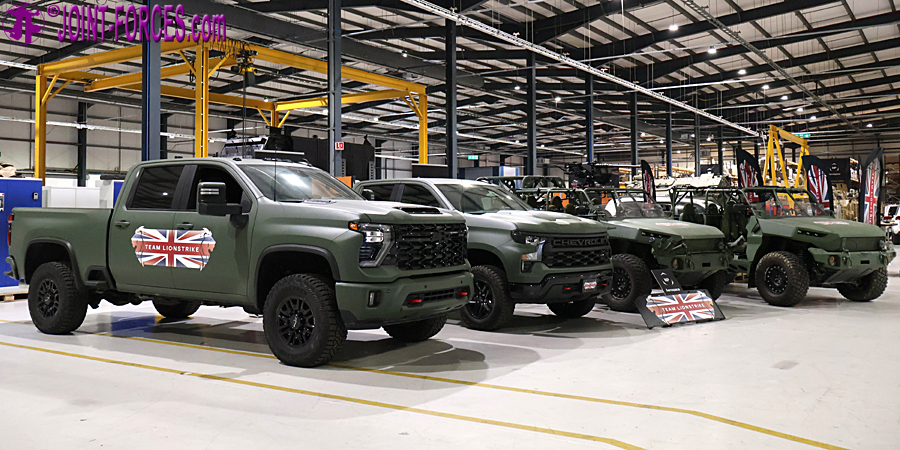

Team LionStrike UK LMV contenders [© Bob Morrison]

Footnote: Two contenders in the UK LMV race have already had JOINT-FORCES visit them to see firsthand their proposals and receive exclusive background briefs, plus two more have issued visit invitations for later this month. Should any manufacturer or consortium wish to talk to us I still have limited diary availability before the next round of defence expos commences in early September, but please don’t leave it too late to make arrangements as DVD2026 is fast approaching and there simply won’t be enough time to do everyone justice at this expanded exhibitor numbers two-day event.

~ ~ ~
